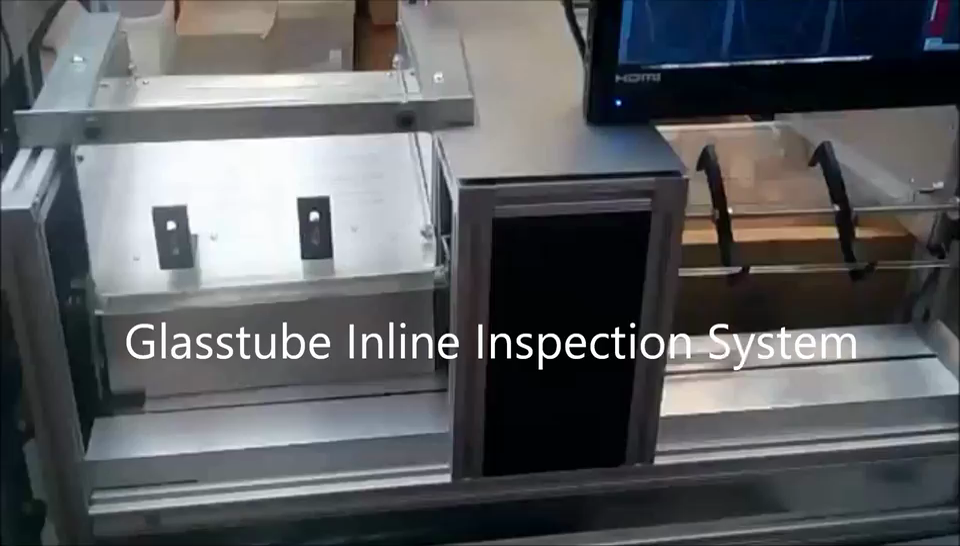

Glasstube Inline Inspection System
This is a fully automated inline equipment to measure glass tube OD,ID, and to detect scratches. It integrates multiple senosrs, an air-bearing stage, a feeding module, and a sorting system. The tool has been used for daily production at a major glasstube manufacturer since 2015.
| OD /ID repeatability: | 5 μm |
| Scratch sensitivity: | 1 mm |
| Inspection speed: | 1800 tubes/hour |
| Feeding module capacity: | 1000 tubes |
Profile Vision Sensor

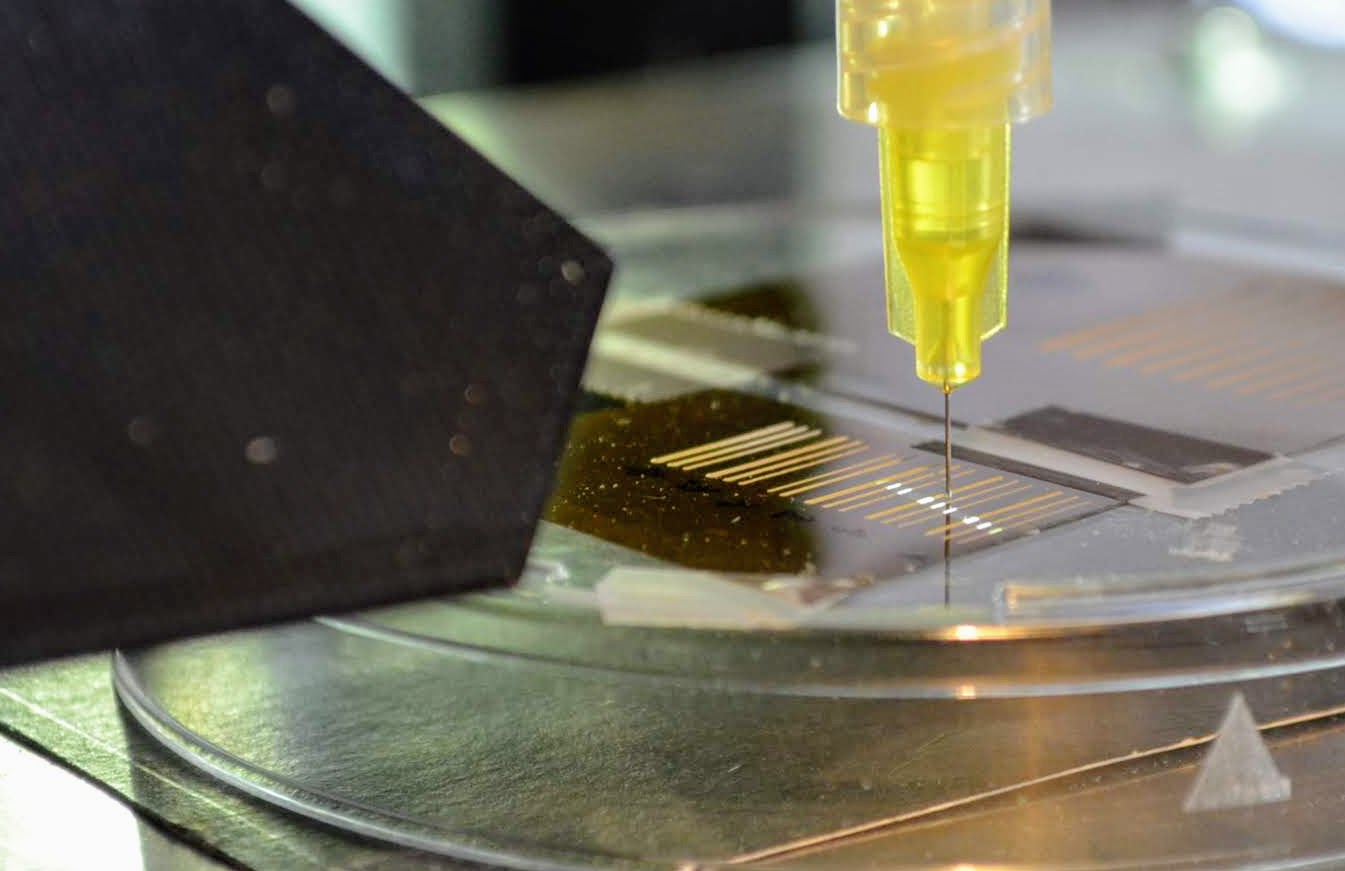

This sensor was designed as a real-time inline feedback for precision fluid dispensing process. It also founds applications in measuring surface profile and micro structure dimensions.
| measurement range: | 10-100 μm |
| height sensitivity: | 1 μm |
| field-of-view width: | 500 μm |
| profile points #: | 600 |
Measure profiles of silver paste lines
Measure a roughness standard with Profile Vision Sensor
Workstation A
Solid XYZ stage for customized applications at low cost. This is a stepper motor based system, driven by TMC silent micro-step controllers on a Raspberry Pi. It has an adjustable shelf to mount different modules, and a convenient keypads for pre-defined positions and actions.
| Exterior dimensions: | 20"L | 14"W | 12"H |
| Travel range: | X:120mm | Y:120mm | Z:5mm |
| Repeatability: | X:20μm | Y:20μm | Z:5μm |
